Apeiros API-240

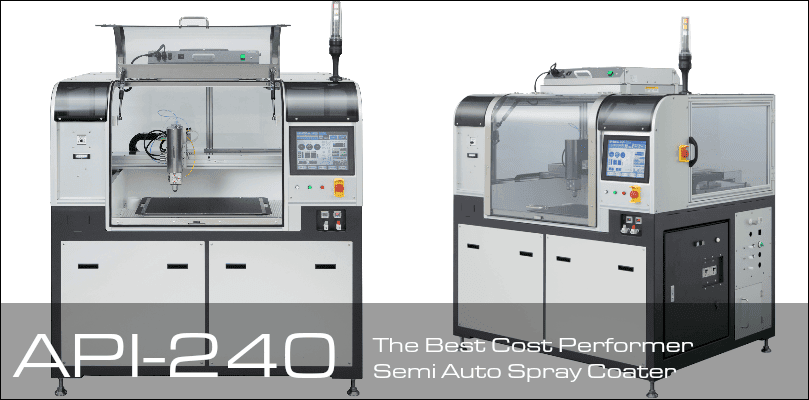

Apeiros API-240, Semi-Auto Spray Coater. Used for mass production and research and development. AS, AR, AG, OGS, OLED, and Fuel Cell.

API-240 is our standard model and is equipped with the high-precision spray head DLCS ™ that brings together our technologies. The maximum coating size is 600 x 400 (mm), the head speed is 1,000 mm / sec, and if it is a smartphone-sized substrate, it boasts high productivity of about 1 million pieces per month depending on the application.

Model API-240 has a small footprint.

Contact Us
apeiros-api240
apeiros api240-1
apeiros api240-2

Apeiros API-240

Equipment specification

API-240AS API-240FC
Use Fingerprint coating Fuel cell platinum catalyst coating
Equipment dimensions 1,400 x 1,200 x 1,550
(W x L x H, mm)		 1,700 x 1,700 x 1,550
(W x L x H, mm)
Substrate size
(= active application range)		 600 x 400 (mm)
Head speed 1,000 mm / sec
Height adjustment 20mm – 100mm
Board fixing method Adsorbed on an aluminum tray Adsorption on a heating stage
Operation screen 12 inches color TFT resistive touch panel (Japanese / English / medium)
Chemical supply system Our own DLCS ™ system
Liquid chemical relationship – Chemical tank (capacity 5L type)
, the solution tank (capacity 5L type)		 – Chemical tank (capacity 1L type)
, with automatic stirring function
Recipe Twenty Twenty
Other standard features , Chemicals automatic feeding
, automatic cleaning
, automatic degassing function
· DATA log
-thermo-hygrometer
nozzle clogging monitoring
and exhaust differential pressure gauge
chamber within the LED light		 And heating stage (MAX.120 ° C.)
-porous adsorption stage
, anti-settling automatic stirring function
, recoating
-automatic pitch offset
, chemicals automatic feeding
, automatic cleaning
, automatic degassing function · DATA log
-thermo-hygrometer
nozzle clogging monitoring
and exhaust differential pressure gauge
chamber within the LED light
